BreakThru

Barrier Devices

Performance for every completion need

Nine’s patented BreakThru™ Barrier Device series offers a range of high-performance isolation and pressure-actuated technologies. Built to withstand extreme downhole environments, each device offers cost-effective, reliable solutions for diverse well completion needs.

Contact Sales

Pressures up to

Ten Thousand

PSI Rated

Tailored Solutions

Each BreakThru Barrier Device is optimized for specific well conditions, making it easy to choose the right solution based on operational needs. The four key models—Standard, Pump Open, Single-Cycle, and Multi-Cycle—each bring unique advantages to the table.

Versatile Performance

Offering industry-leading reliability for various applications, including pressure testing, well barrier plugs, fluid loss control, and hydraulic packer setting. BreakThru Barrier Devices are designed for hostile environments (H2S and CO2), they ensure well integrity and provide a full-bore ID upon opening.

Effective

The BreakThru Barrier Devices deliver reliable performance in diverse conditions. Designed to maximize operational efficiency, they ensure swift responses to changing downhole environments.

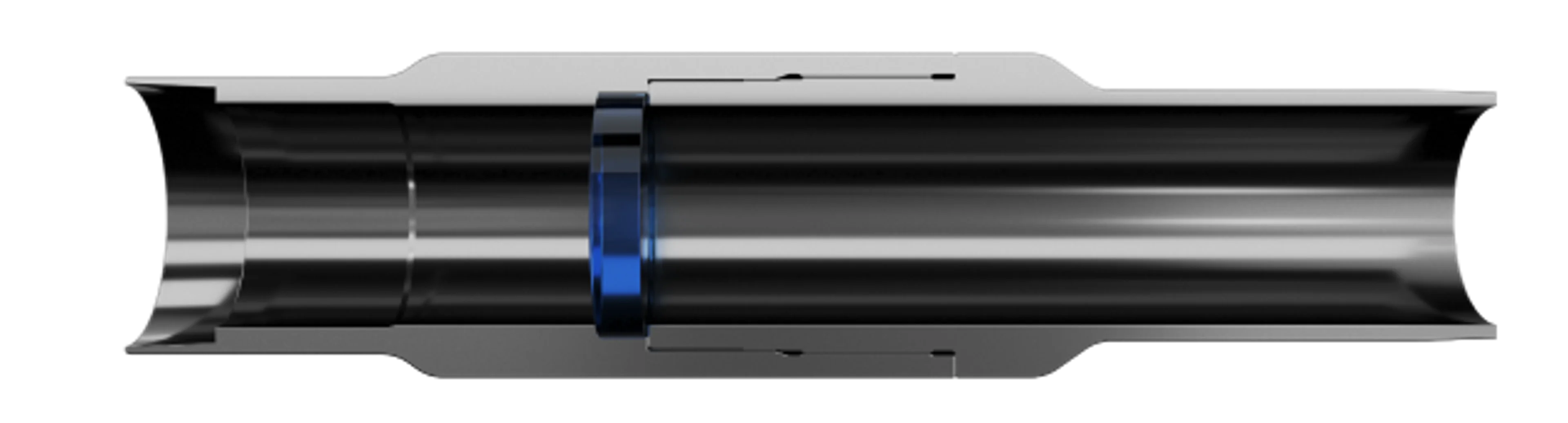

BreakThru
Dig Deeper

Four variations. Every well condition.

Intervention Actuated

Shattering conventional limitations, this intervention-actuated device isolates tubing and provides a reliable barrier for testing completions and hydraulic packers.

Single-Cycle

Remotely activated from the surface with no intervention, this device provides precise control for zonal isolation.

Multi-Cycle

Offering unmatched flexibility, this device allows for multiple pressure cycles, ideal for wells requiring multiple tests.

Pump Open

This cost-effective, bi-directional device opens remotely by applying surface pressure, allowing full-bore access once the preset pressure is reached.

 StandardSingle-CycleMulti-CyclePump Open
ActivationCoil tubing
Slickline
Drop bar
Single pressure cycle
from the surface
Self-calibrating multi-cycle
pressure system

Remote pressure
from the surface
Pressure ratingUp to 10K psiUp to 10K psiCustomize to any number of
high-pressure cycles
up to 10K psi
Up to 10K psi
Optimal useEconomical barrier plug
Fluid loss control
Packer testing
Well barrier plug
Hydraulic packer setting
Fluid loss control
Multiple tests
Hydraulic packer setting
Tubing isolation
Tubing testing
Pressure testing completions
CertifiedISO 14998 V0
ISO 14310 V0
ISO 28781
ISO 14998 V0
ISO 14310 V0
ISO 28781
ISO 14998 V0
ISO 14310 V0
ISO 28781
ISO 14998 V0
ISO 14310 V0
Casing specificationsRated at 320° F (160° C)
Available in:
- 2-7/8”
- 3-1/2”
- 4-1/2”
- 5-1/2”
- 6-5/8”
Rated at 320° F (160° C)
Available in:
- 3-1/2”
- 4-1/2”
- 5-1/2”
- 6-5/8”
Rated at 320° F (160° C)
Available in:
- 2-7/8”
- 6-5/8”
Rated at 320° F (160° C)
Available in:
- 2.875” to 6.625”
We're standing by

With locations near all the critical plays in North American basins, Nine can deploy fast and cost-effective completion solutions. Let’s talk.
