Interventionless MagnumDisks™

Barrier Devices

True Innovation. Zero Intervention.

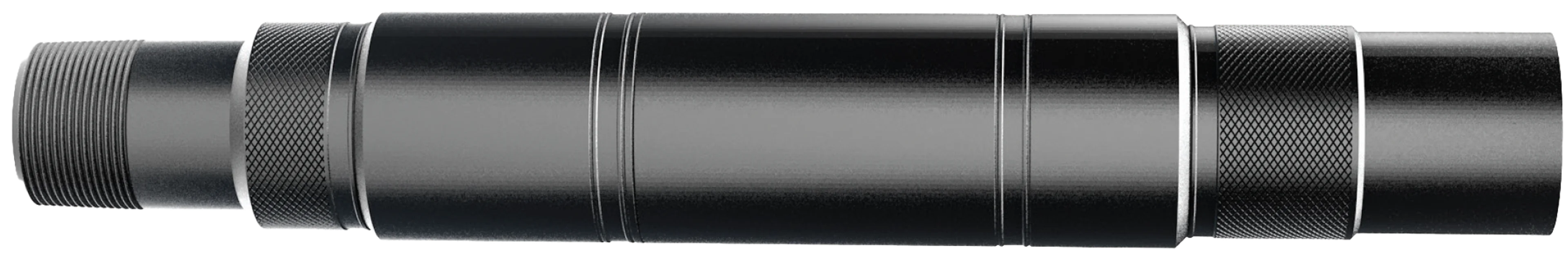

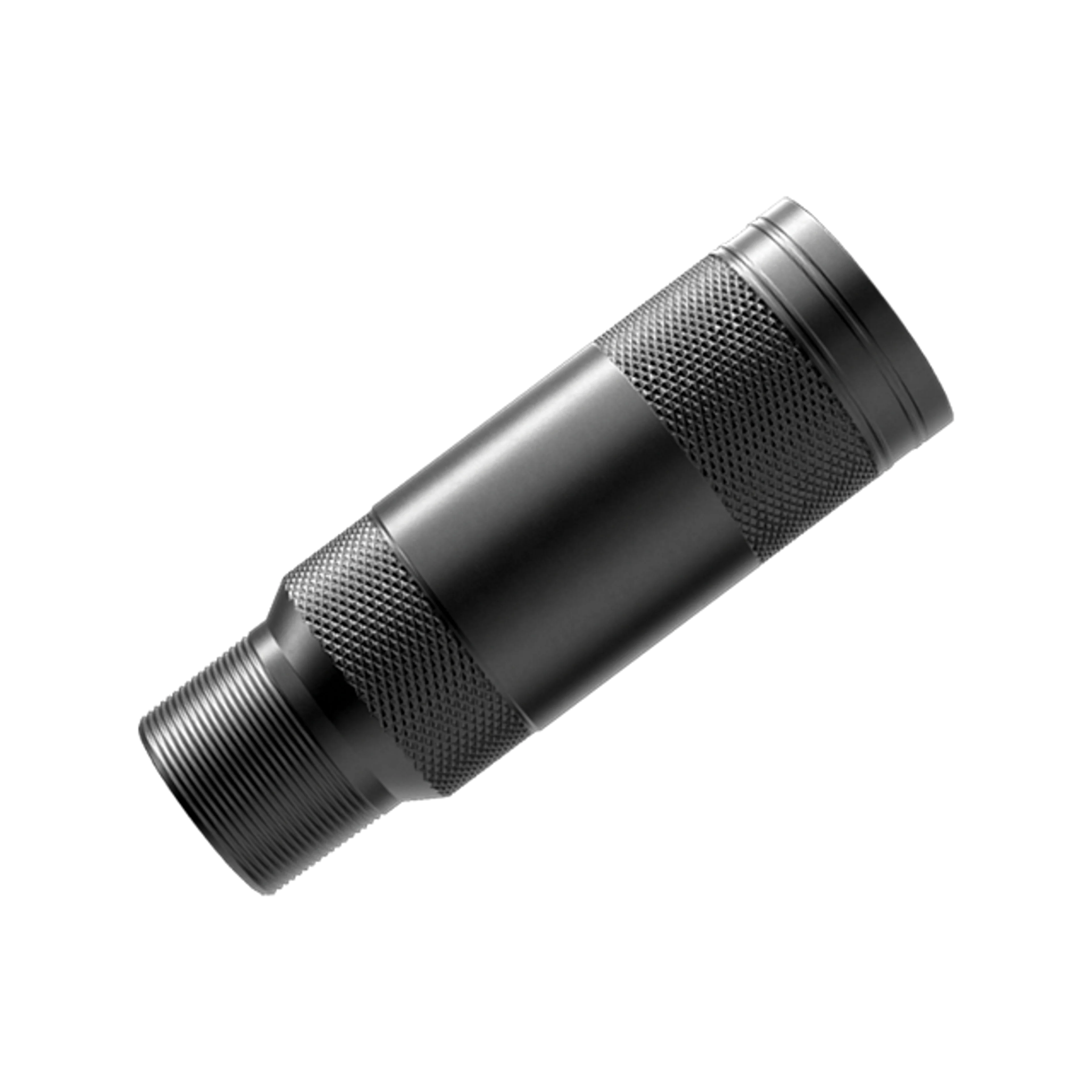

Nine’s Interventionless MagnumDisk™ Barrier Devices (IMAGs) offer reliable isolation performance without the need for intervention. Engineered with two dome-shaped disks, IMAGs deliver exceptional strength and durability in demanding downhole environments.

Contact Sales

No runs

No limits

Just results

Interventionless Performance

IMAGs eliminate the need for traditional intervention methods like slickline or coiled tubing. Once activated, the disks are removed cleanly, allowing full-bore access with virtually no debris left behind. This saves time, reduces risk, and cuts operational costs.

Versatile + Economic

More than one-trick tools, IMAGs bring versatility to operations: each can set hydraulic packers, float casing or liners into horizontal wells, or as a barrier in snubbing jobs. IMAG's full-bore design is a cost-effective alternative to profile nipples with plugs by eliminating extra removal runs.

Reliability under pressure

Crafted from a proprietary material and rigorously tested, IMAGs stand up to extreme downhole conditions. Each device is temperature-rated to 400°F, compatible with H₂S and CO₂ environments when paired with CRA materials, and performs reliably in heavy muds.

IMAG™

Dig Deeper

three variations. interventionless innovation.

Shear Style	Accurate to plus or minus 10% of absolute pressure value. Ideal for operations looking for moderate pressure precision.
Finger Style	Available in multiple sizes with Maximum Internal Pressure Ratings up to 15,000 psi. A reliable option for various wellbore configurations.
Ultra Style	Engineered for extreme conditions, the Ultra style delivers exceptional durability in high-pressure, high-temperature wells at pressure ratings up to 20,000 psi.

	Activation	Pressure Rating	Optimal Use	Technical Specs
Shear Style	Shear activated; accurate to ±10% absolute pressure	Up to 15K psi	Standard isolation jobs with moderate precision	Rated at 400° F Available in: - 2-3/8" - 2-7/8" - 3-1/2"
Finger Style	Field-adjustable; ±2% accuracy	Up to 15K psi	Versatile isolation across varied wellbore configurations	Rated at 400° F Available in: - 2-3/8" - 5-1/2" - 7"
Ultra	Field-adjustable; ±2% accuracy	Up to 20K psi	Extreme HPHT downhole conditions requiring maximum durability	Rated at 400° F Available in: - 3-1/2"
